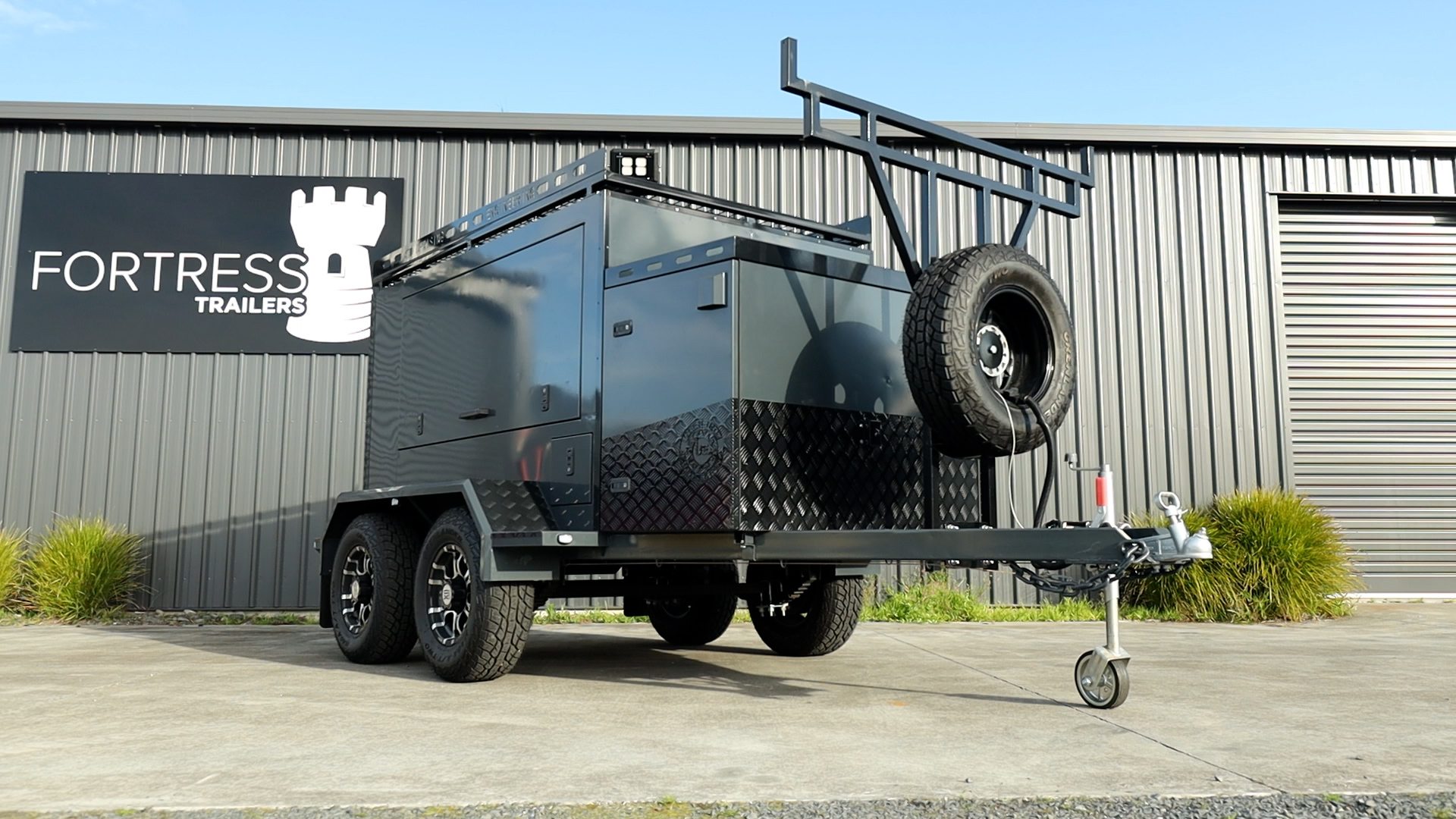

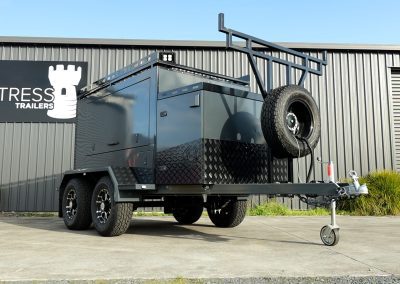

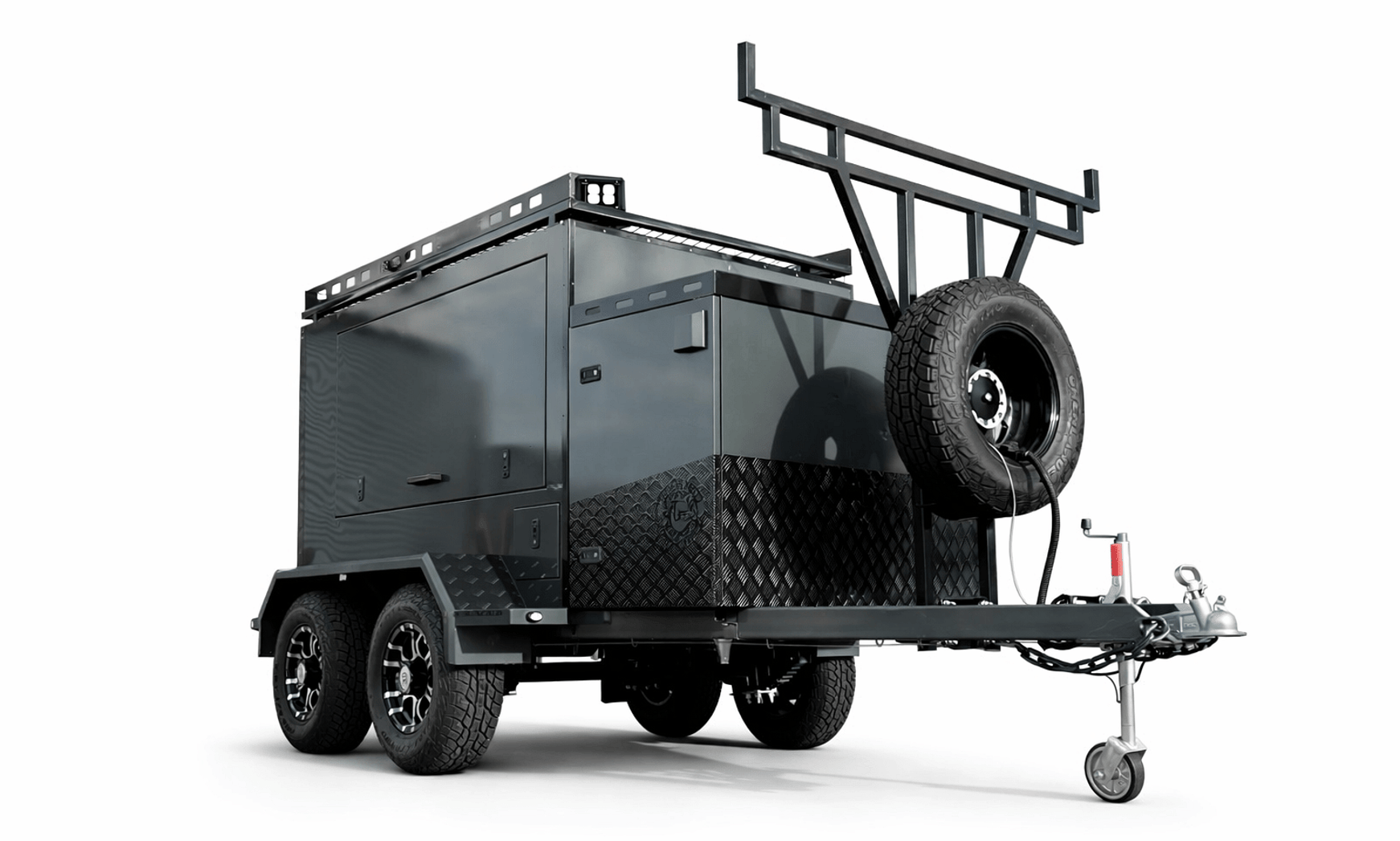

THE PRO TRADE SERIES TP85
THE PRO TRADE SERIES TP85
The Pro Trade Series TP85 is a solid mid-range tandem axle solution. Designed with an open central compartment the TP85 offers a solution for those applications where large pieces of equipment require to be transported or those trades people who require some flexibility in the way they wish to accommodate any additional shelving. Large storage in the front box, side drawers, rear drawers and roof racks allows a huge number of supplies and equipment to be mobilised.
 |
 |
BUILT TOUGH, TO PLAY TOUGH
PRO TRADE SERIES TP85
TARE 1350kg (without options)
GVM 2800kg
PAYLOAD 1450kg
BALL WEIGHT 135kg (Dry)
SIZE 4390mm(L) x 2150mm(W) x 2150mm(H)
BODY SPECIFICATION
• Heavy duty one-piece RHS chassis 100x50x4mm that’s fully hot dip galvanised and powder coated
• Precision CNC laser cut and pressed zinc anneal body sheets
• Duragal internal structure support framing
• Top timber/ladder rack with welded mesh on underside and rear roller 2400mm(L) x 1500mm(W)
• Removable front draw bar load support rack
• Aluminium stone protection plates and foot treads all round
• Flush mount side and rear opening doors with automotive seals and gas struts
• Compression locks on all doors and storage compartments
• Fittings (bolts, nuts, washers, screws and pop rivets) are all stainless steel
RUNNING GEAR
• 8 leaf Rocket Roller suspension and solid 50mm square axles (rated 3.5 tonne)
• Dual 10” electric brake hubs with 6 stud Land Cruiser stud pattern
• 5 x 15” alloy rims and tyres
• Premium jockey wheel with rubber tyre
• 3,500kg tow coupling to suit 1 ⅞” ball with handbrake
STORAGE
• Main body storage compartment internally 2350mm(L) x 1440mm(W) x 850mm(D)
• Enclosed front storage box with fridge slide, storage compartments & shelving. Fridge slide size: 850mm(L) x 550mm(W) x 530mm(H)
• Storage rail system on top of front box
• 2 x rear shelving levels, Bottom: 400mm deep, Top: 350mm deep

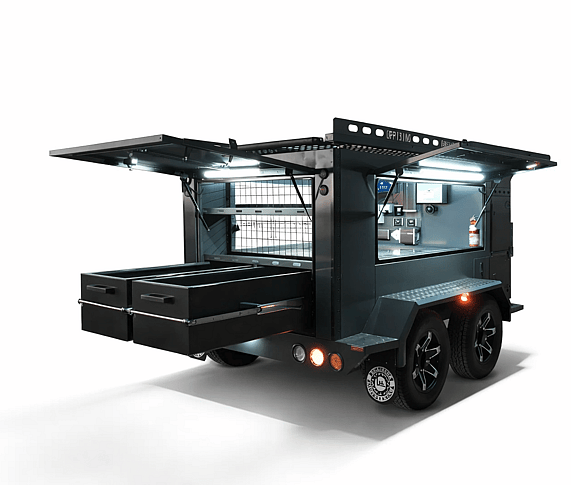

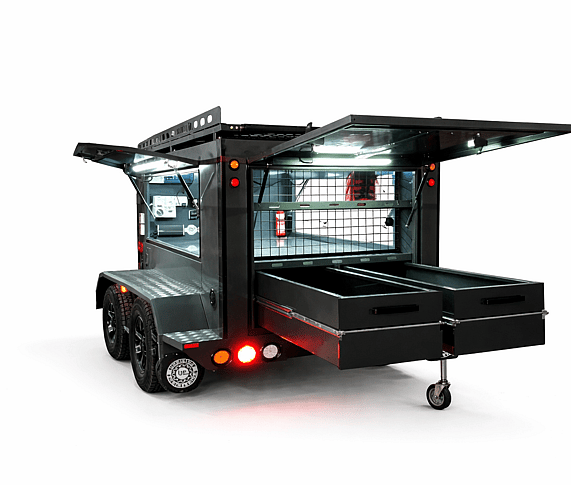

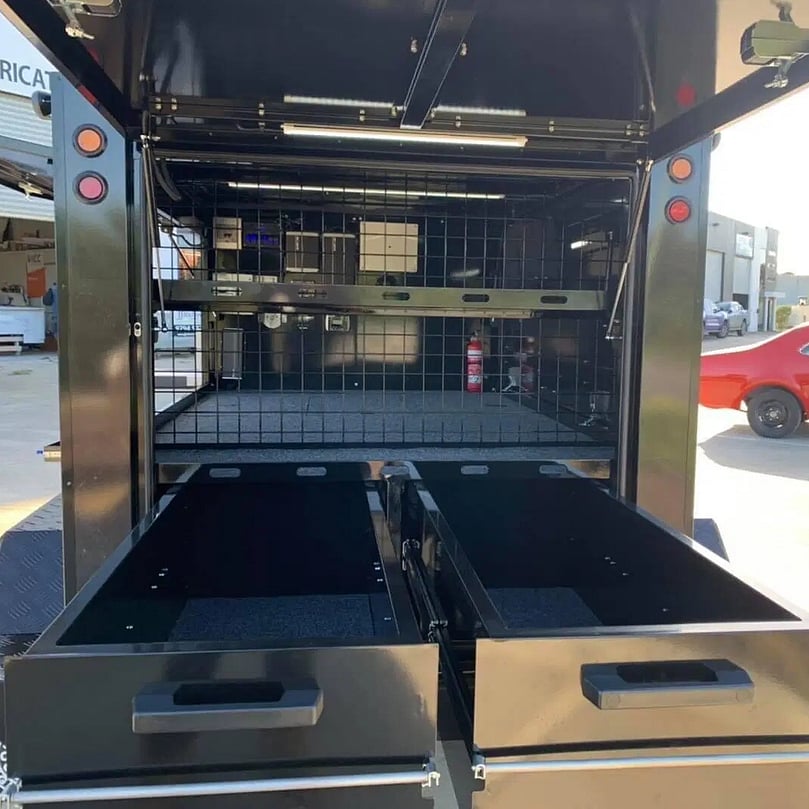

• 2 x massive rear slide out drawers 1200mm(L) x 490mm(W) x 360mm(H) on 160kg rated slides
• 2x slide out drawers either side towards front of main body 700mm(L) x 210mm(W) x 170mm(H)
ELECTRICAL
• Full LED internal lighting with control management panel in main body
• 2x 100A/H batteries
• 50 Amp Anderson Plug for charging while driving or solar (connection only)
• LED tail lights with reverse light, side marker and front clearance lights
• Safety Breakaway Unit
• Includes Elecbrake Controller
