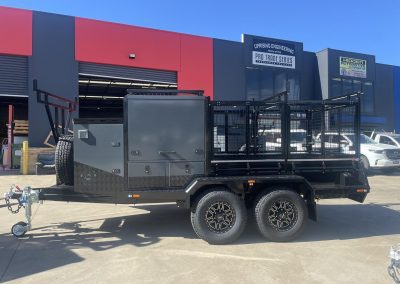

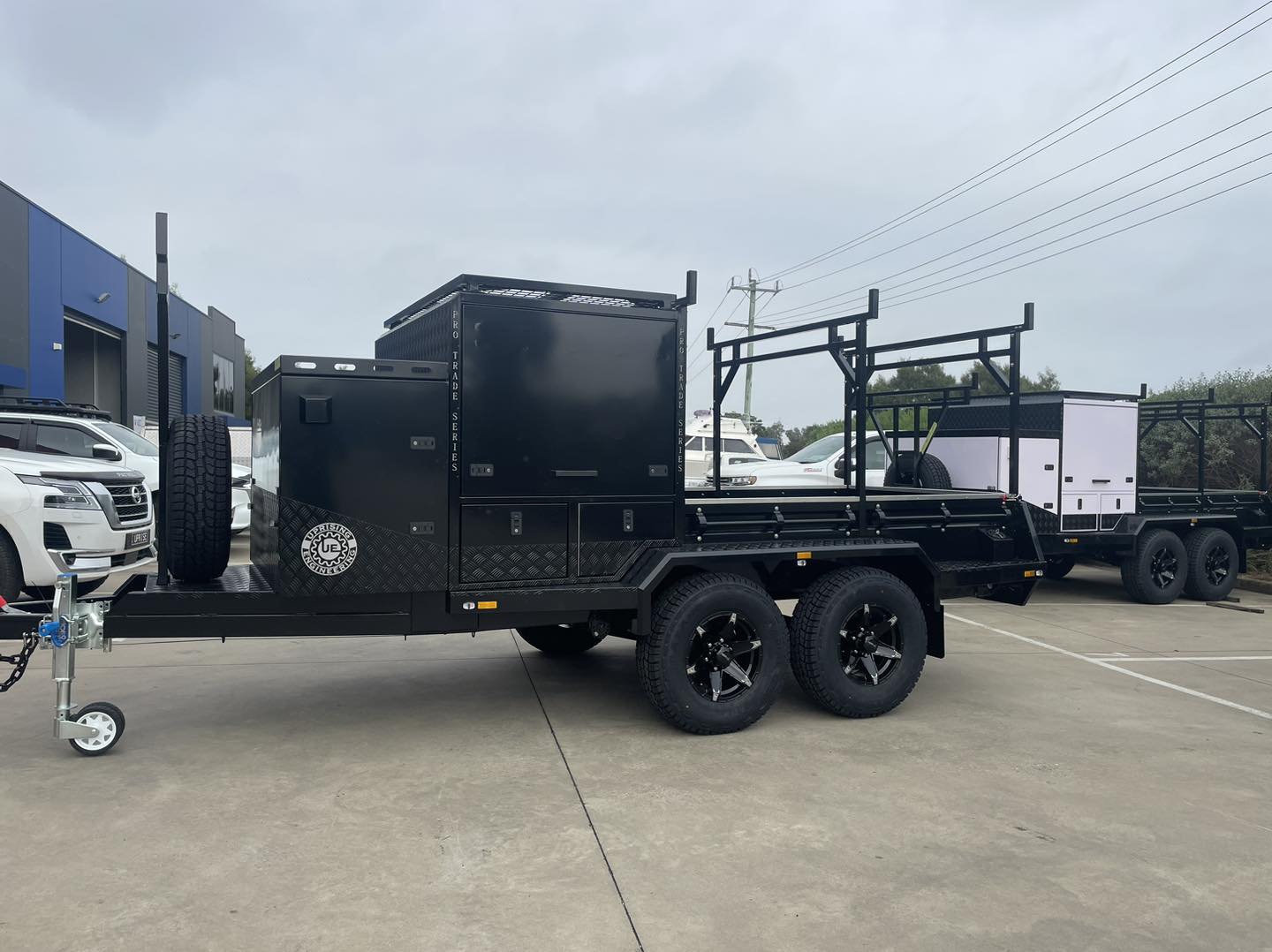

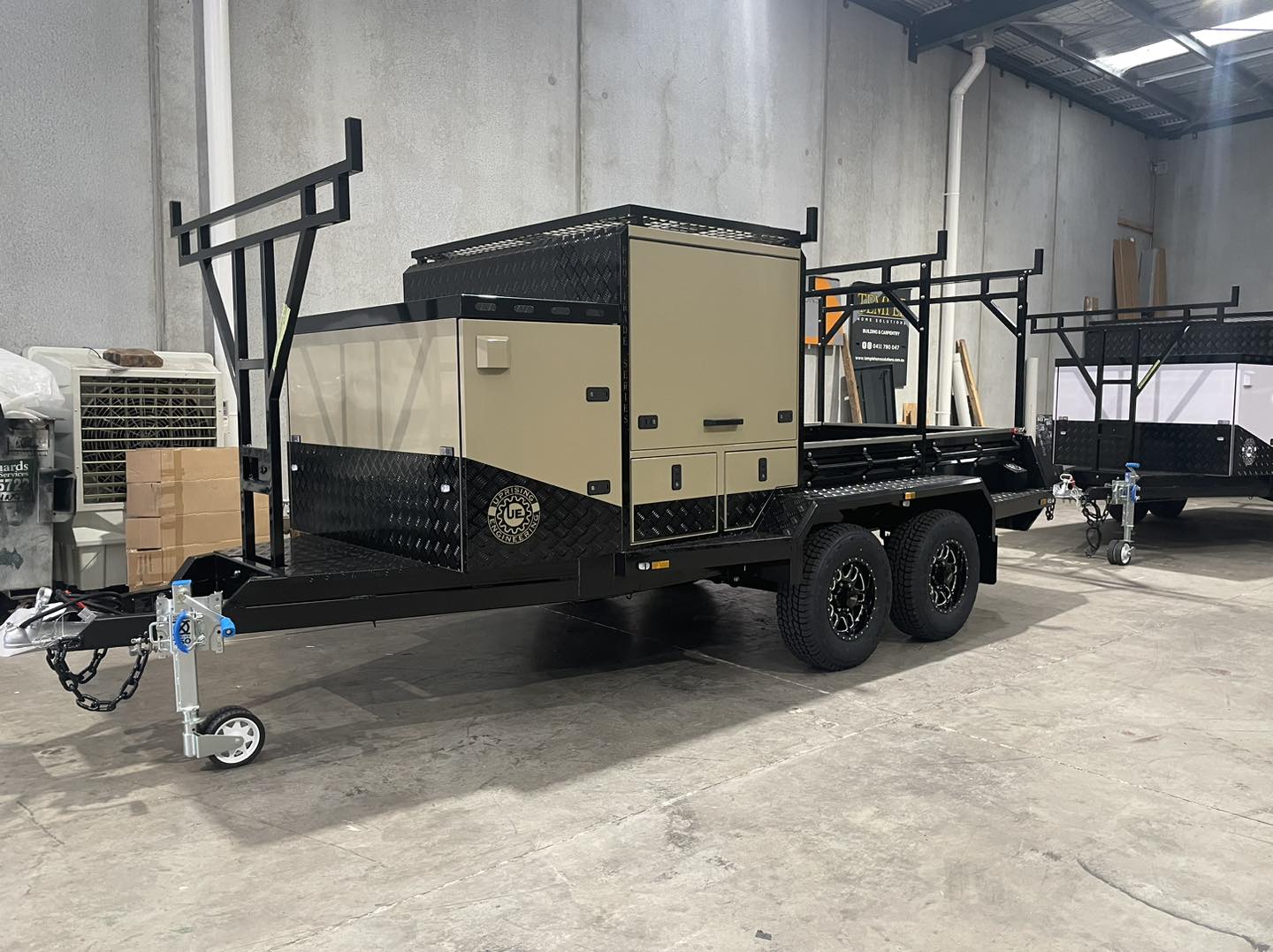

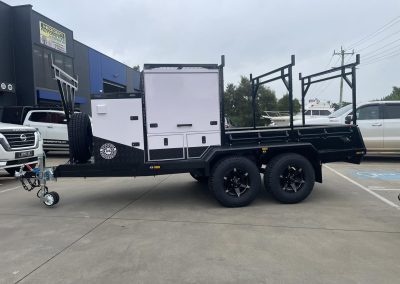

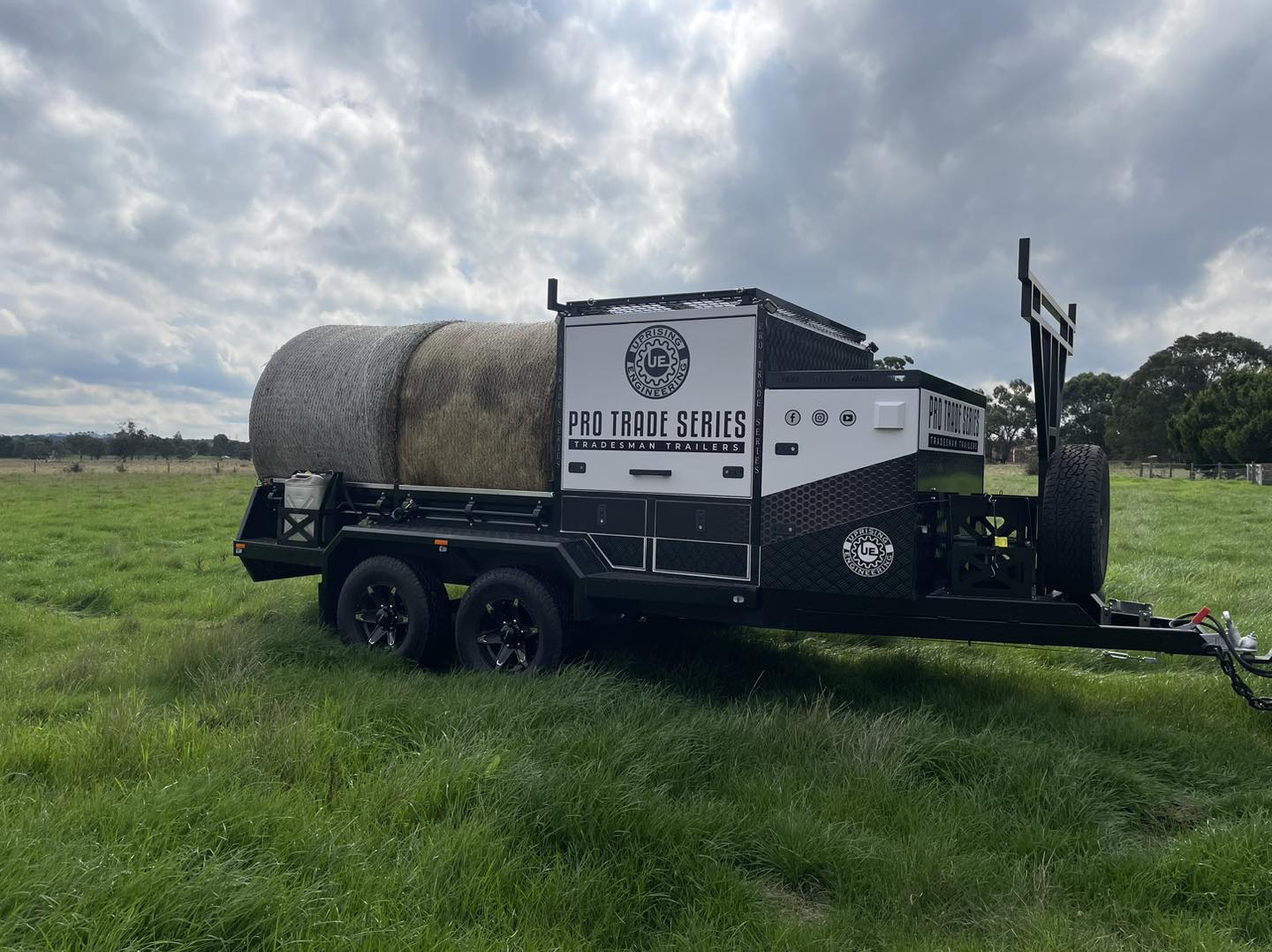

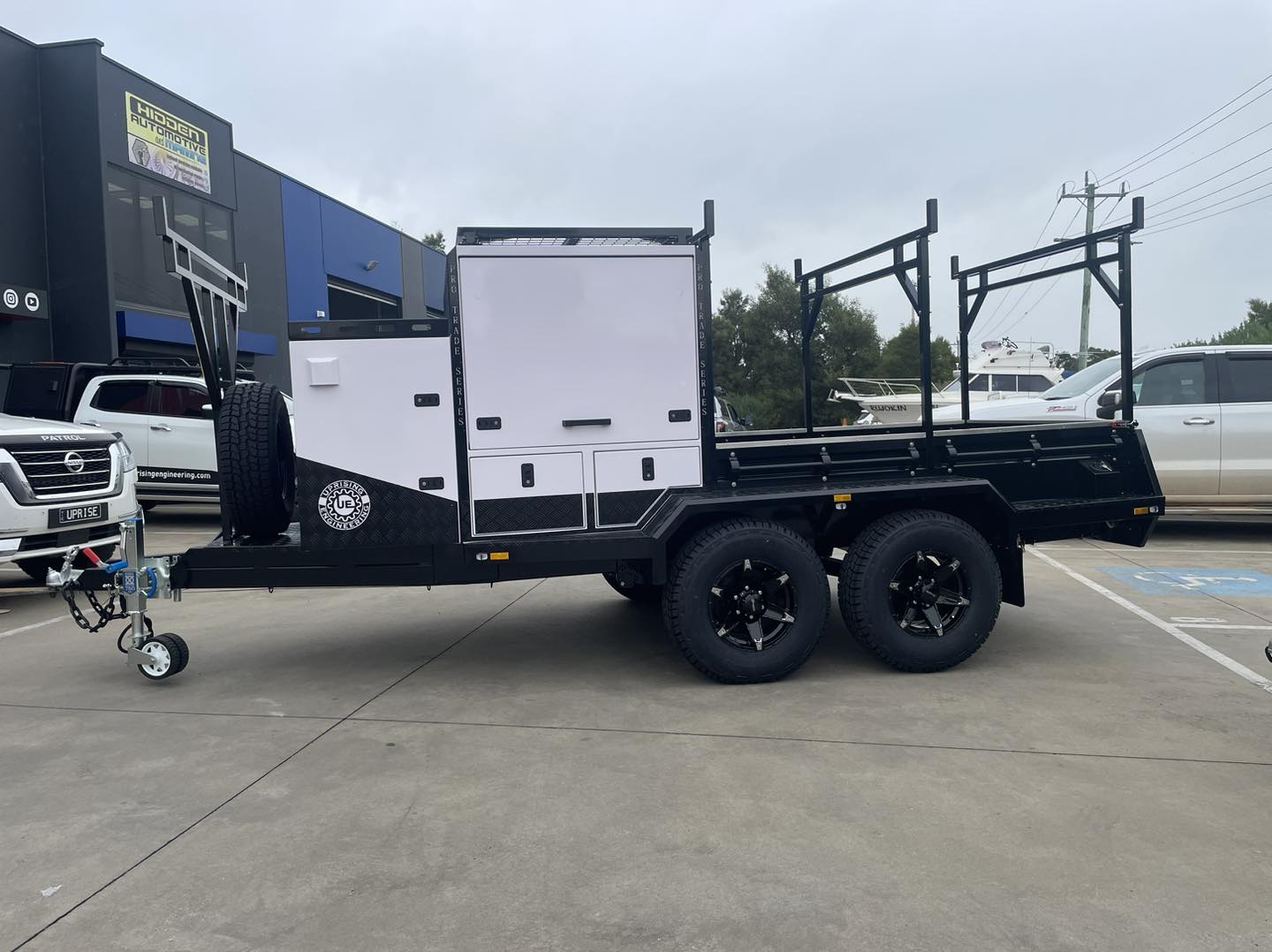

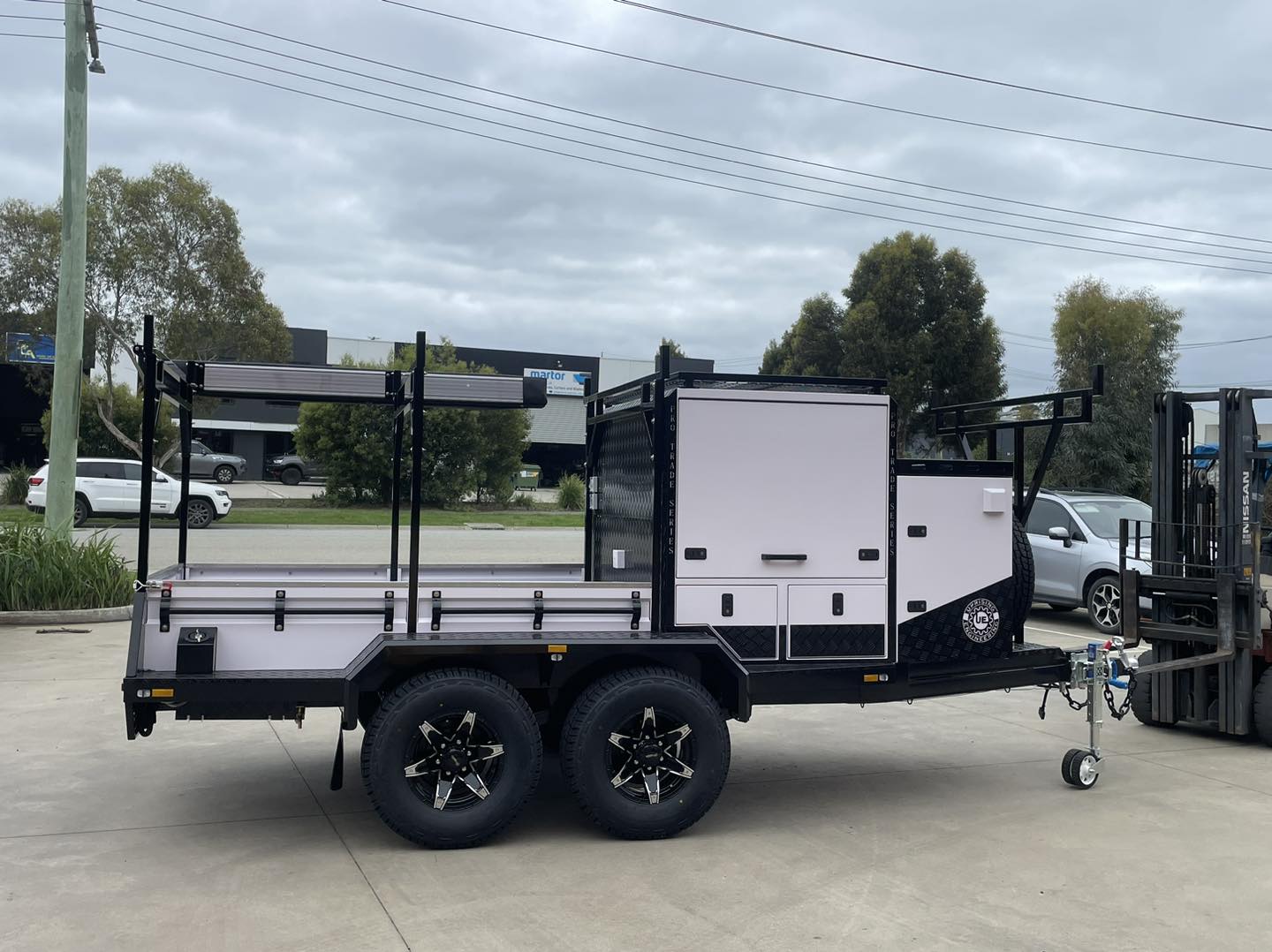

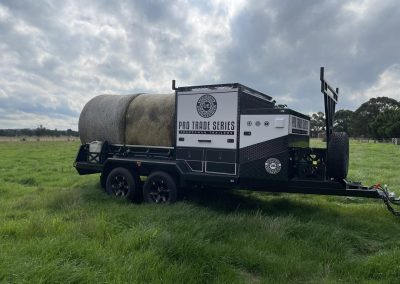

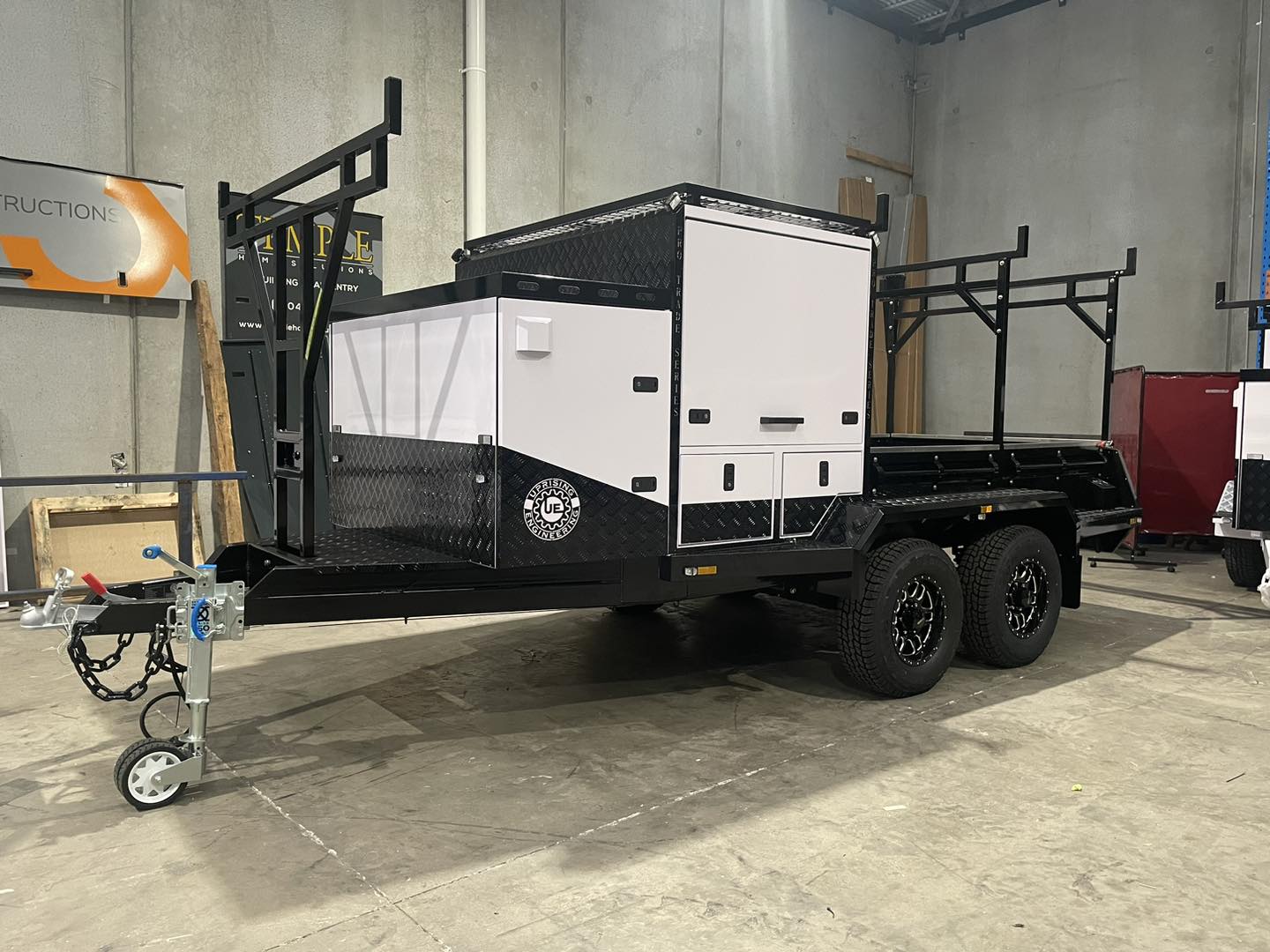

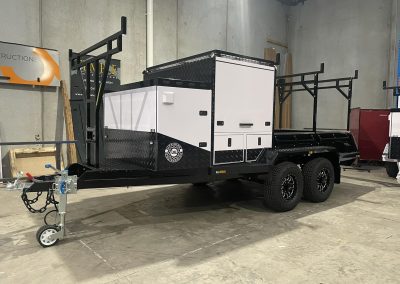

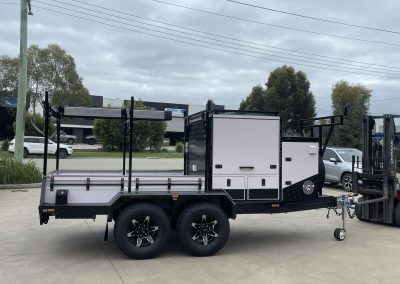

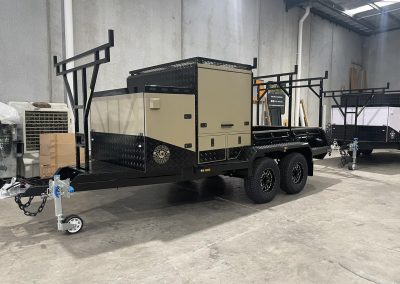

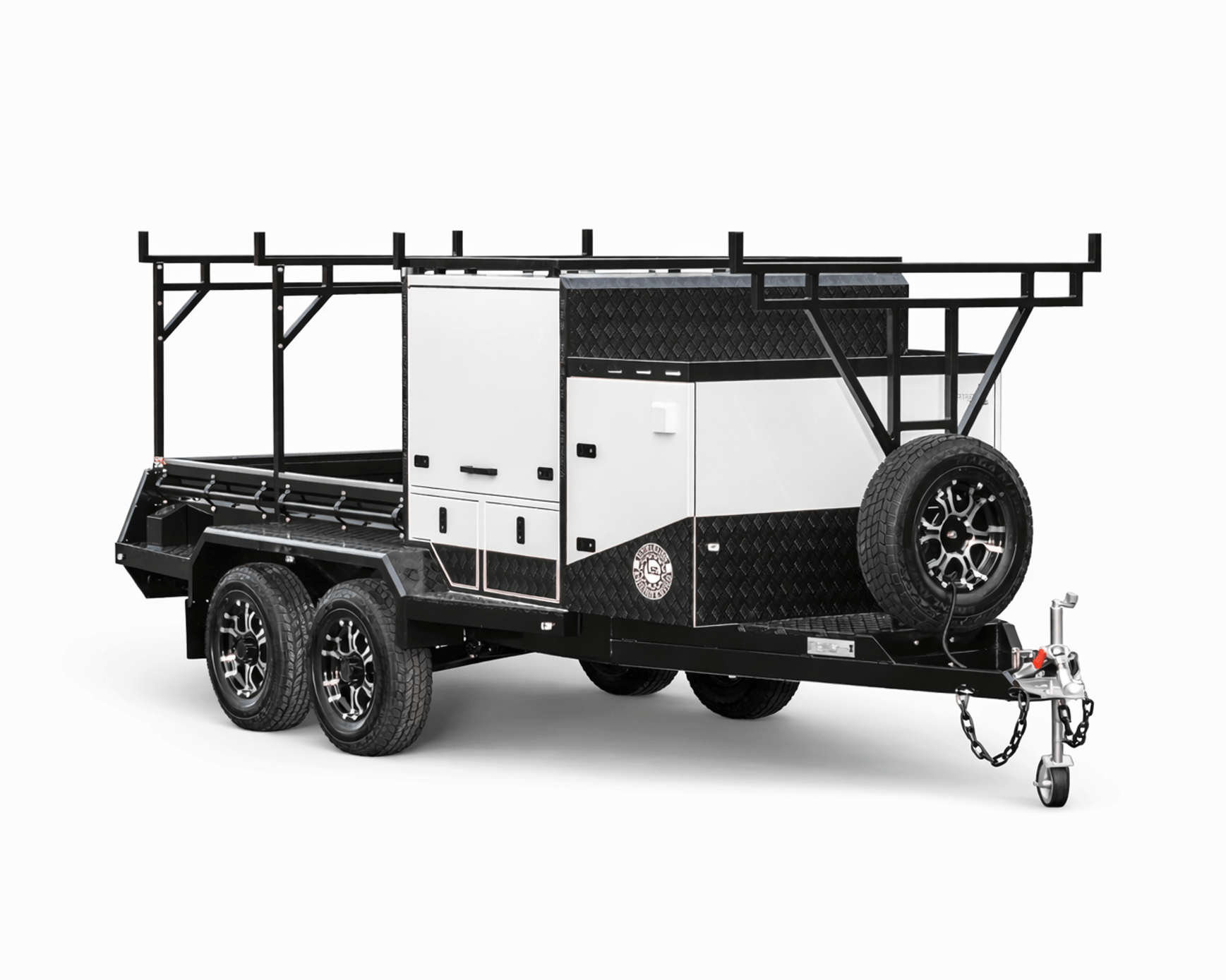

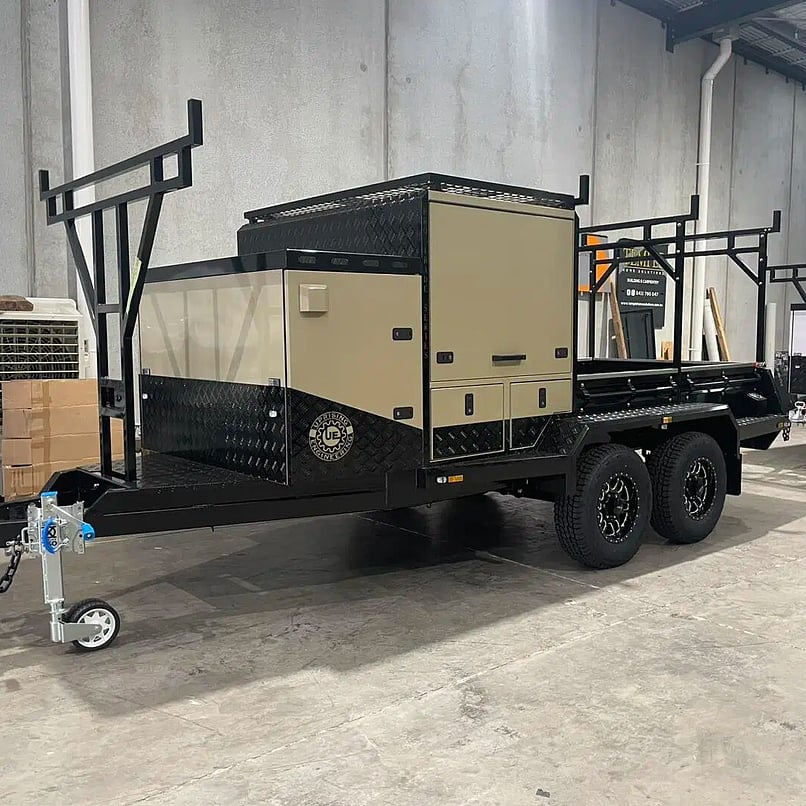

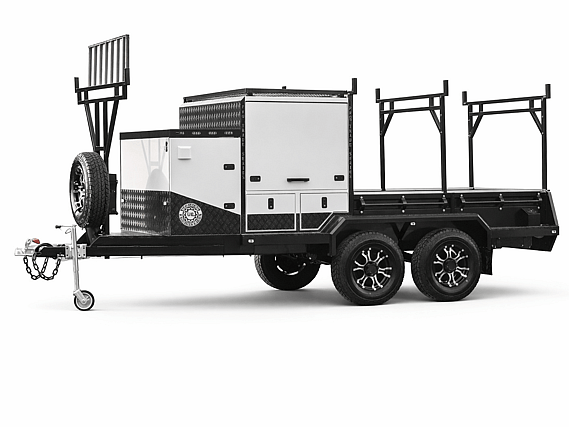

PRO TRADE SERIES TPH

Tare: 1580kg (without added options)

GVM: 3500kg

Payload: 1920kg

Ball Weight: 160kg (Dry)

Overall Size: 5650mm(L) x 2300mm(W) x 2280mm(H)

Heavy duty one-piece RHS chassis 100x50x4mm that’s fully hot dip
galvanized and powder coated.

Precision CNC Laser cut and Pressed Manufacturing processes.

Pressed rear tailgate and sides 400mm high

2.5mm Aluminum front box and canopy to reduce weight but also keep strength.

Our trailers are fully powder coated

The rear Deck section on the TP-H is 2470mm Long x 1570mm Wide (internal)

The H -frame hurdles and sides can be removed if required to create a open deck area.

Front draw bar load support rack that’s removable, The spare wheel can also be mounted in the tray against the canopy.

Aluminum stone protection plates and foot treads all round

Automotive seals and gas struts on all doors and draws.

Compression locks on all doors and storage compartments.

Rope tie rails each side and stainless top caps on sides to reduce wear and scratching

Independent swing arm suspension with flat top coils and twin shock absorbers.

Dual 12’’ electric brake hubs with 6 stud Land cruiser stud pattern (139.7 PCD)

5 x 15″ Primal Alloy rims and quality tyres.

Premium XO series jockey wheel with twin rubber Tyre and fully adjustable heights.

3500kg Tow Coupling to suit 1 7/8” ball with handbrake

RAGE

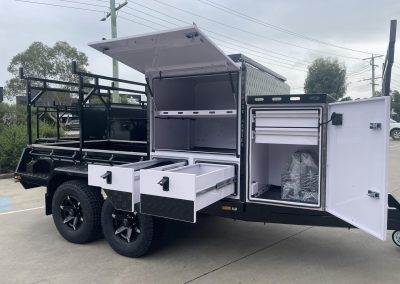

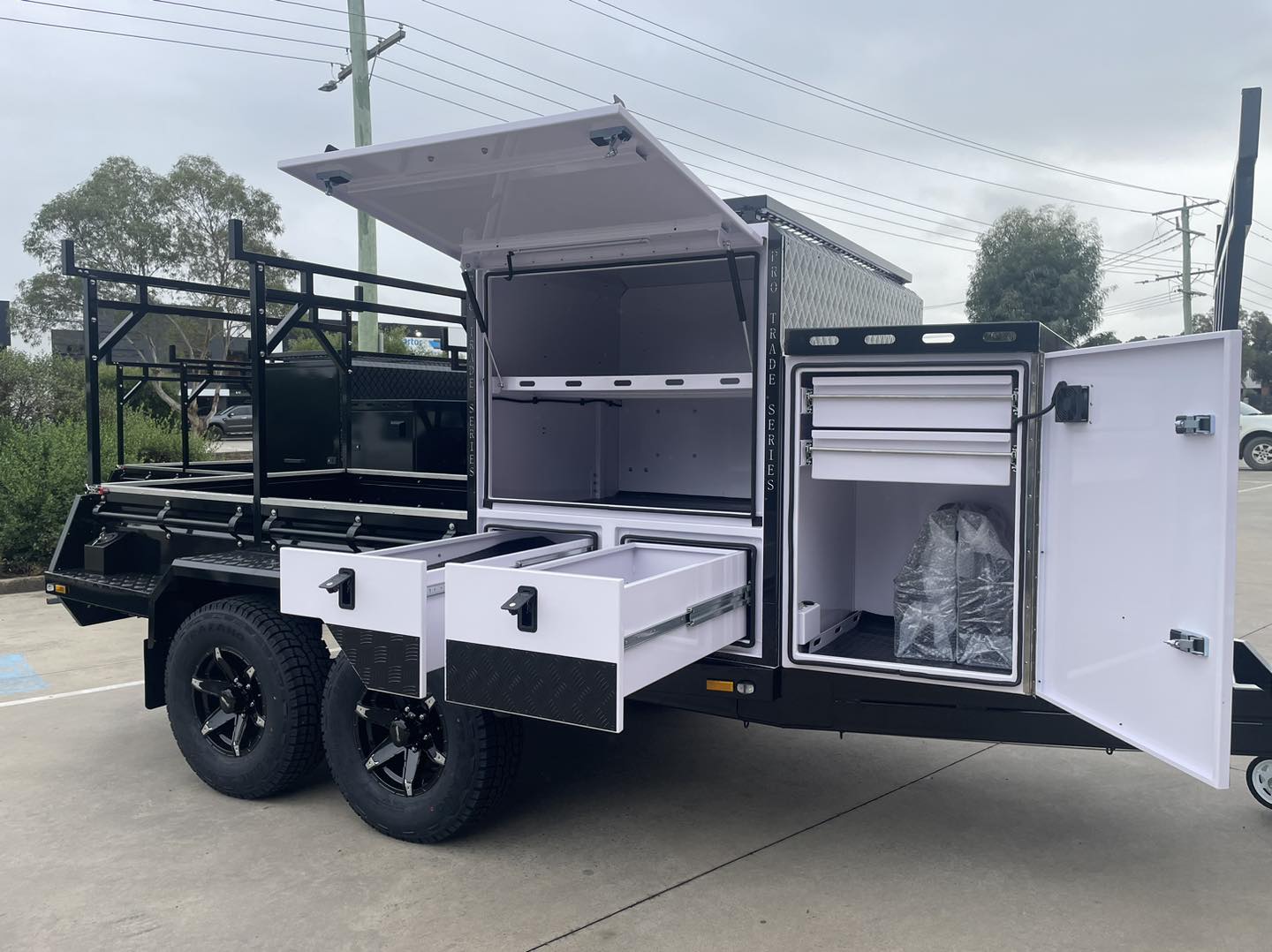

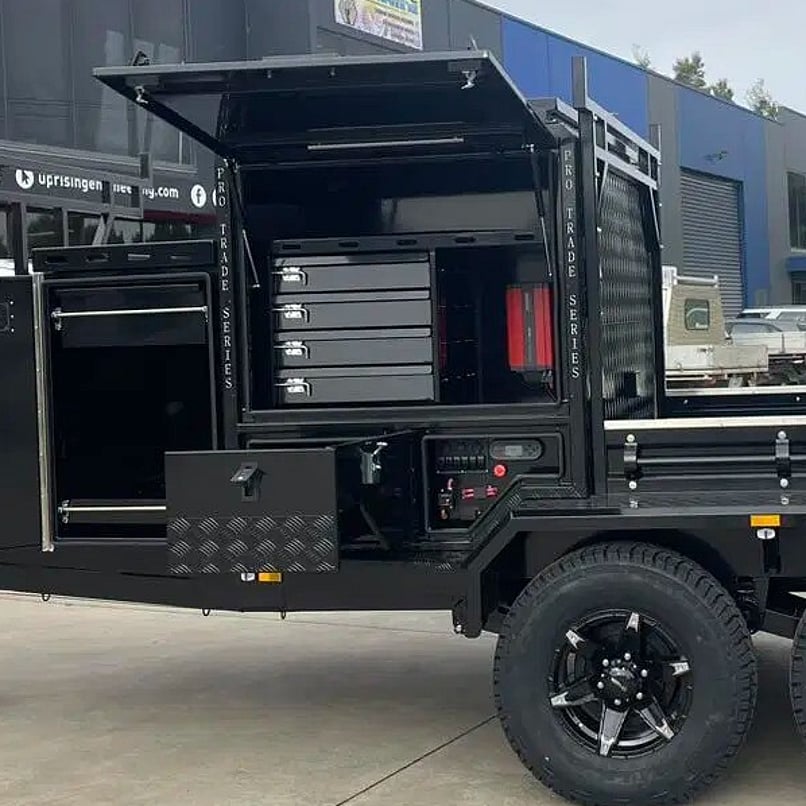

• Main canopy storage compartment (Left side)

• 1200 wide x 700 deep to wall

• Floor to shelf 570 high – Shelf to roof 380 high – shelf is 600 deep

• Bottom section beside tool boxes is 700 deep x 500 wide x 570 high

• Tool boxes have 4 draws at 120mm high x 540 wide x 550 long

• Bottom Storage draw is 390 wide x 870 long x 260 high

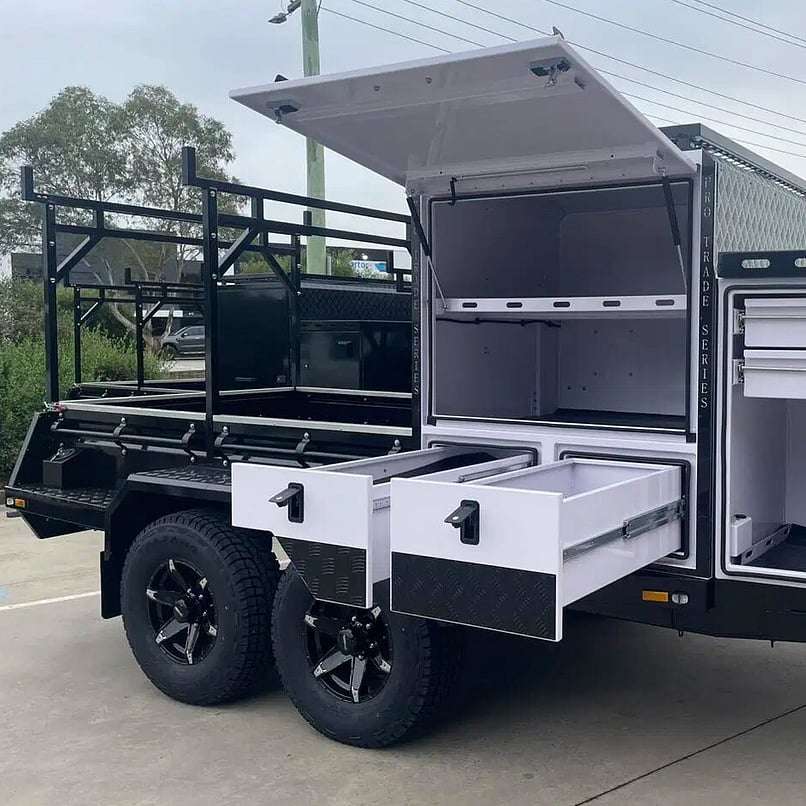

• Main canopy storage compartment (Right side)

• 1200 wide x 1040 deep to wall

• Floor to shelf 460mm high , shelf to roof 480mm high – shelf is 980 deep

• Bottom storage draws 390 wide x 870 long x 260 high

• Front storage fridge box.

• Enclosed front storage Box with fridge slide, storage draw and open

• compartment on opposite side 1800mm long x 700mm wide (both sides of this box has 12 volt Anderson plug power sockets and a fan)

• Fridge Slide size area is 850(L) x 550(W) x 600(H- to top of draw)

• Draw above fridge area is 830 (L) x 530 (W) x 190 (H)

• Storage rail system on top of front box for additional items to be carried

• Right side of this box has an area of 700 (W) x 680 (D) x 850 (H –from floor to roof)

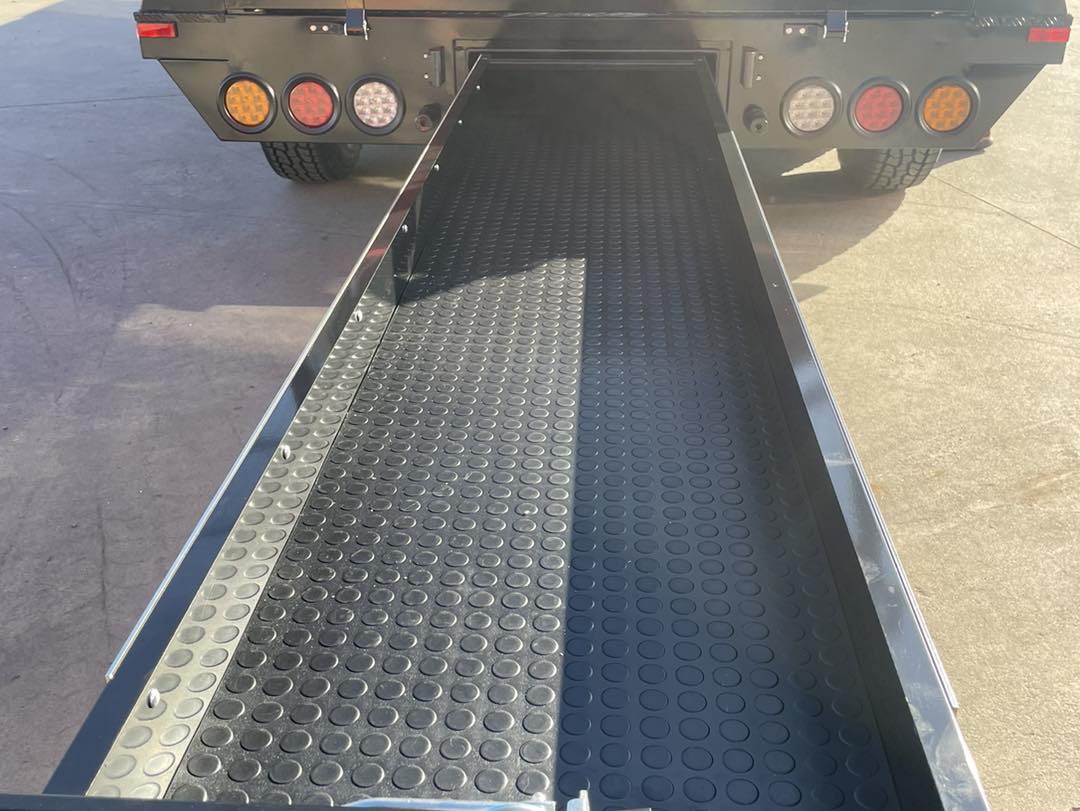

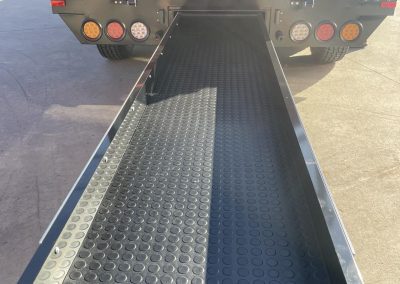

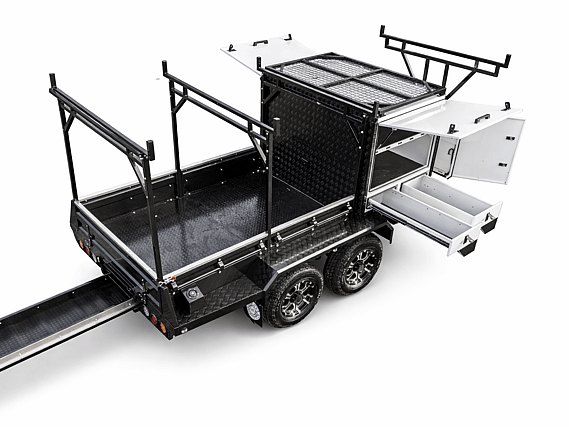

• Rear trundle draw system

• This rear draw is designed on full ball bearing guides due to its size and strength, size of this draw is 3000mm (L) x 500 (W) x 140 (H)

• H- Frame hurdles

• Rear H-frame hurdle does have a rear roller to assist with ease of loading

• H-Frames are 1770 wide internal of the horns or 1850 over all ……horns are 100mm high

• All 3x H-frame hurdles are removable completely with the sides, or you also have the choice to remove the top section of the hurdle itself and leave the post and sides attached. ( This is designed like this so you can adjust hurdle Hight to suit you by reducing post length ……or removing the top section to load larger items on the rear deck)

• Fuel holders

• 2x jerry can holders are also supplied with this build and can be mounted where suited to your preferred location.

• Water storage

• Twin rear mounted water tanks 40ltrs each

Full LED internal canopy lighting with control management panel

2 x 120amp AGM batteries

50amp Anderson plug for charging while driving or from solar

LED tail lights with reverse light, side marker and front clearance
lights

Safety Breakaway unit

The light switch panel and breaker switches are hidden in drawer
like area with swing open door

Includes Elecbrake Controller
