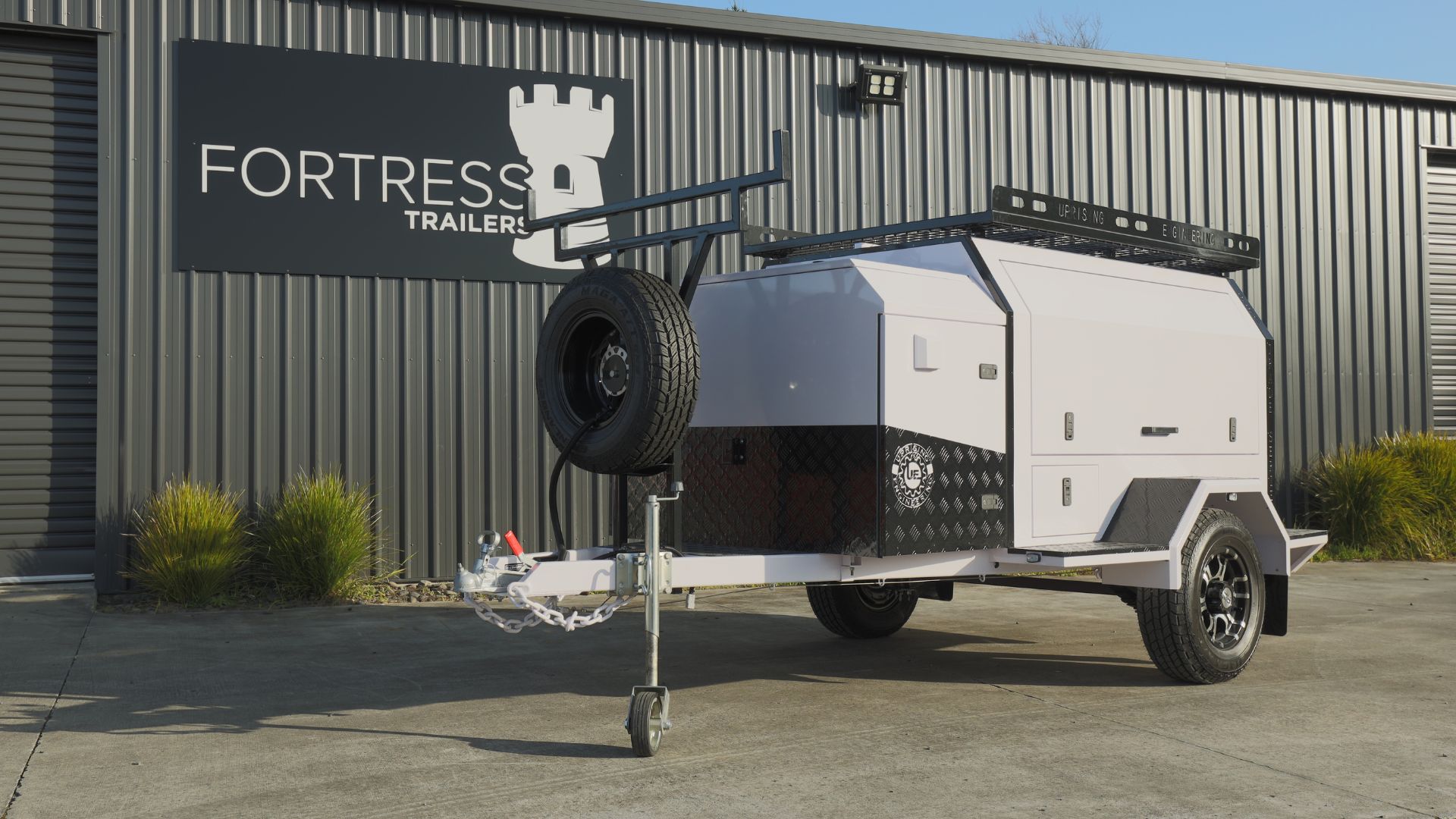

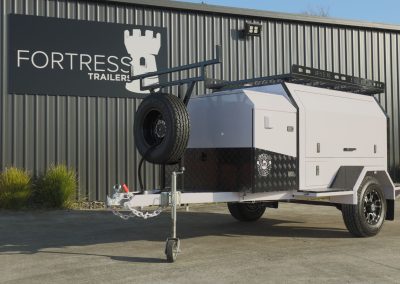

PRO TRADE SERIES TP75
THE Pro trade series TP75
If you need a single axle trailer with a greater level of manoeuvrability, then the Pro Trade Series TP75 is the ultimate Tradesman Trailer in this space. Built tough to handle the work the TP75 is still no lightweight trailer. A high level of internal storage in the main compartment with additional capacity in the front box, side and rear drawers and roof rack.
The Pro Trade Series TP75 is a high-quality top performing Tradesman Trailer
 |
 |
BUILT TOUGH, TO PLAY TOUGH
PRO TRADE SERIES TP75
TARE 900kg (without options)
GVM 1800kg
PAYLOAD 900kg
BALL WEIGHT 140kg (Dry)
SIZE 4000mm(L) x 2150mm(W) x 2000mm(H)
BODY SPECIFICATION
• Heavy duty one-piece RHS chassis 100x50x4mm that’s fully hot dip galvanised and powder coated
• Precision CNC laser cut and pressed zinc anneal body sheets
• Top timber/ladder rack with welded mesh on underside and rear roller
• Removable front draw bar load support rack
• Aluminium stone protection plates and foot treads all round
• Flush mount side opening doors with automotive seals and gas struts
• Compression locks on all doors and storage compartments
• Fittings (bolts, nuts, washers, screws and pop rivets) are all stainless steel
RUNNING GEAR
• 7 leaf eye to eye suspension and solid 50mm square axle (rated 1.8 tonne)
• 10” electric brakes with 6 stud Land Cruiser stud pattern
• 3 x 15” alloy rims and tyres
• Premium jockey wheel with rubber tyre
• 3,500kg tow coupling to suit 1 ⅞” ball with handbrake
STORAGE
• Main body storage compartment 1500mm(W) x 2100mm(L) x 840mm(D)
• Enclosed front storage box for compressor 700mm(W) x 1500mm(L) x 860(H)
• Storage compartment on top of front box 170mm deep
• 2 x massive rear slide-out drawers 1400mm(L) x 400mm(W) x 210mm(D)
• 2 x slide out drawers either side towards front of main body 690mm(L) x 310mm(W) x 170mm(D)
ELECTRICAL
• LED tail lights with reverse light, reflectors all round
• 7 pin flat trailer plug
• Includes Elecbrake Controller
